Professional Scientific Instrument

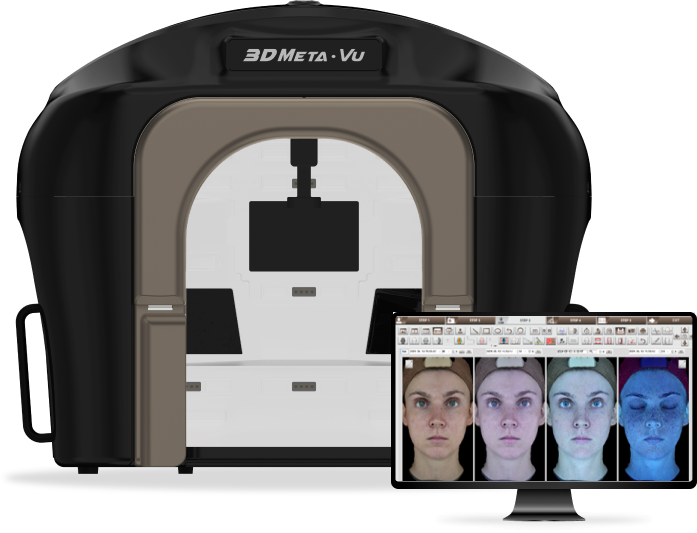

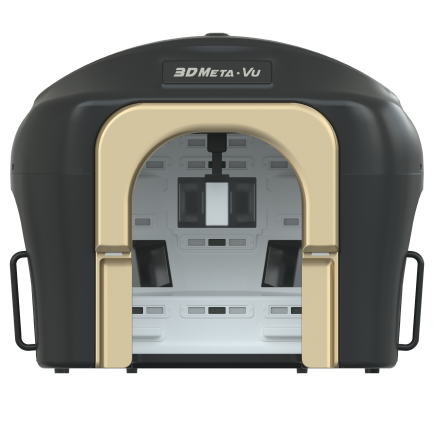

3D Meta-Vu

3D Meta-Vu is a premium 3D skin analyzer with 4 light sources.
This is an indispensable tool in the realms of dermatology
and plastic surgery.

Catalogue Promotional Video

The actual product may differ from the image shown.

  • 3D Meta-Vu
  • Dermatology, Plastic Surgery

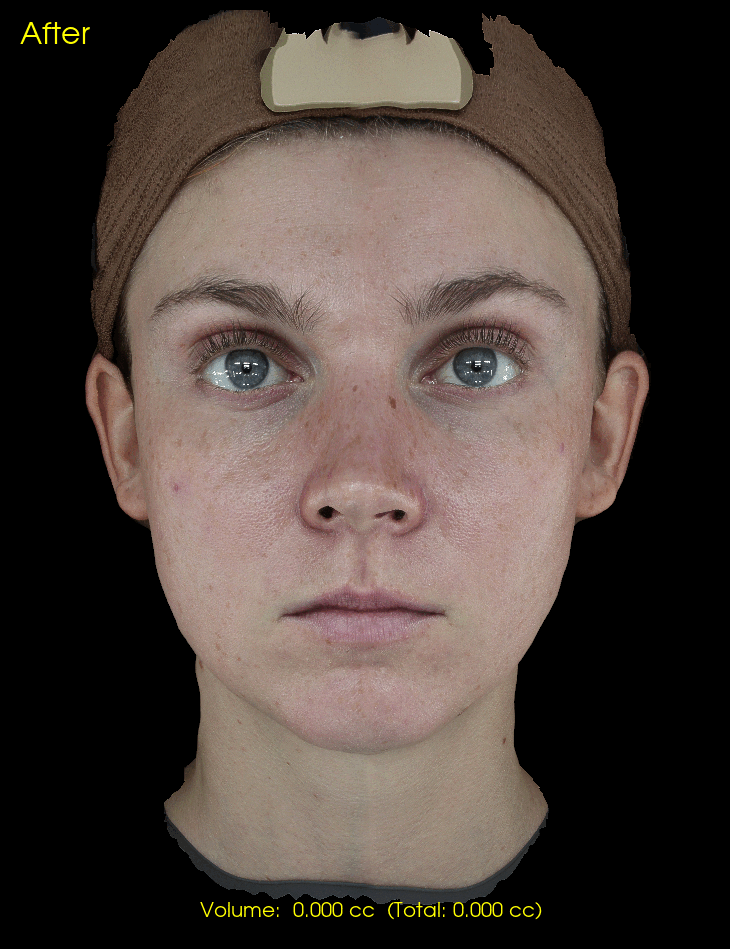

  • Virtual Plastic Surgery

The actual product may differ from the image shown.

  • 3D Meta-Vu
  • Dermatology, Plastic Surgery
  • Color Map & Contour Line

The actual product may differ from the image shown.

  • 3D Meta-Vu
  • Dermatology, Plastic Surgery

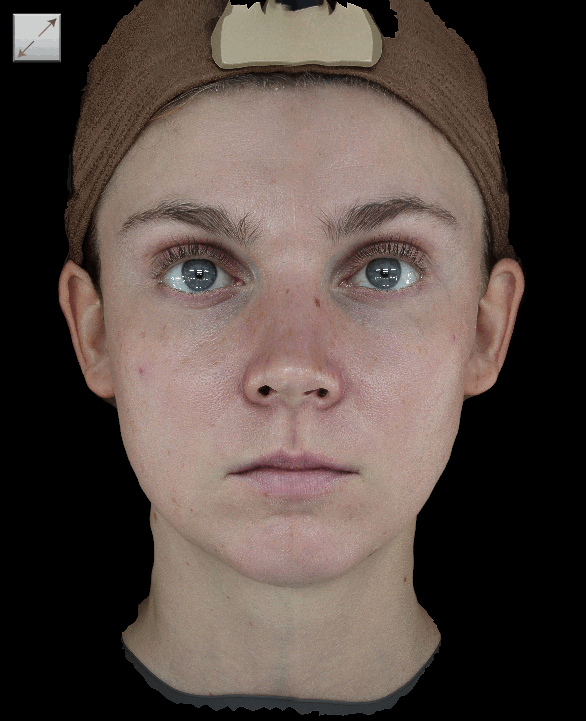

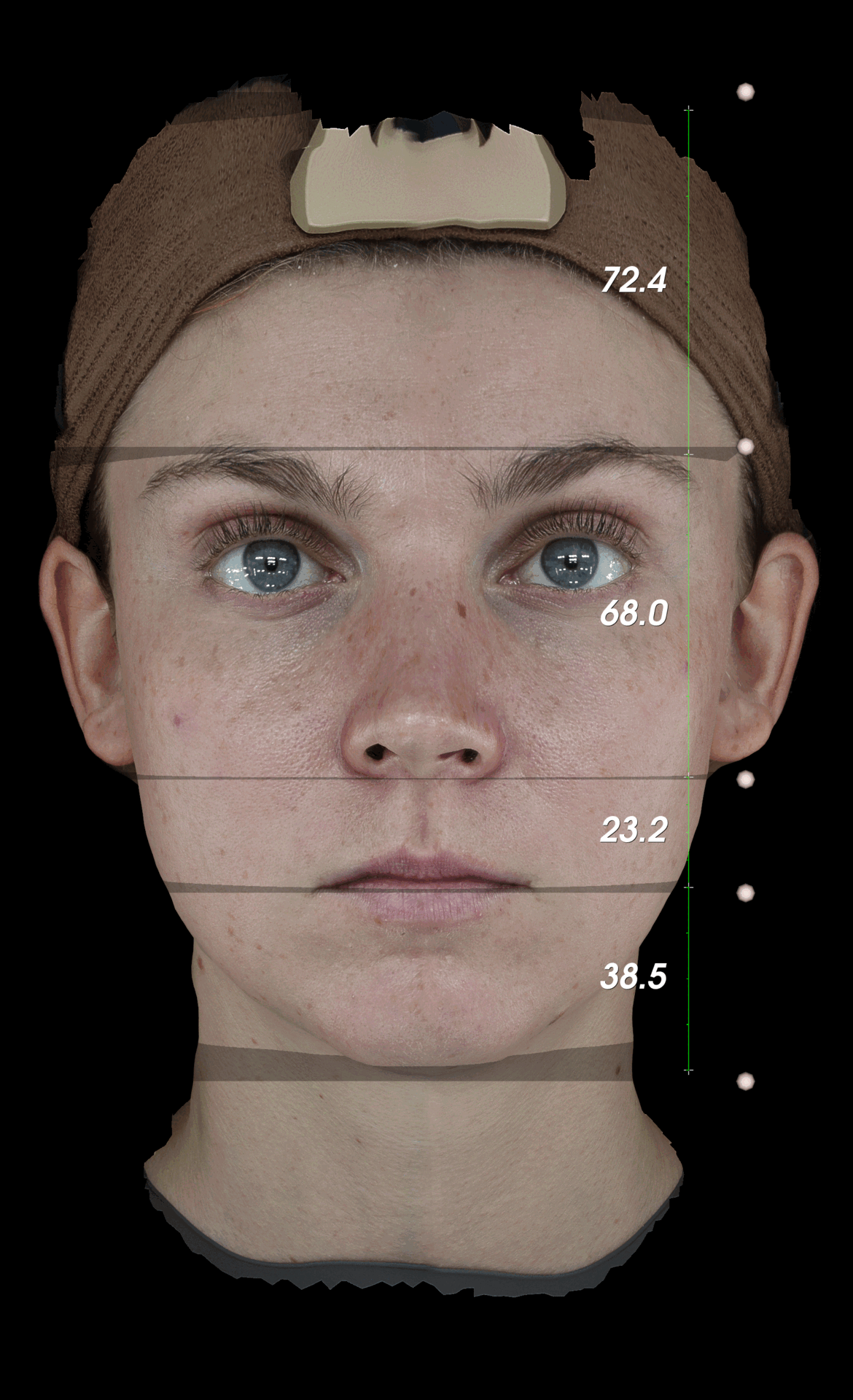

  • Length & Angle Measuremente

The actual product may differ from the image shown.

  • 3D Meta-Vu
  • Dermatology, Plastic Surgery

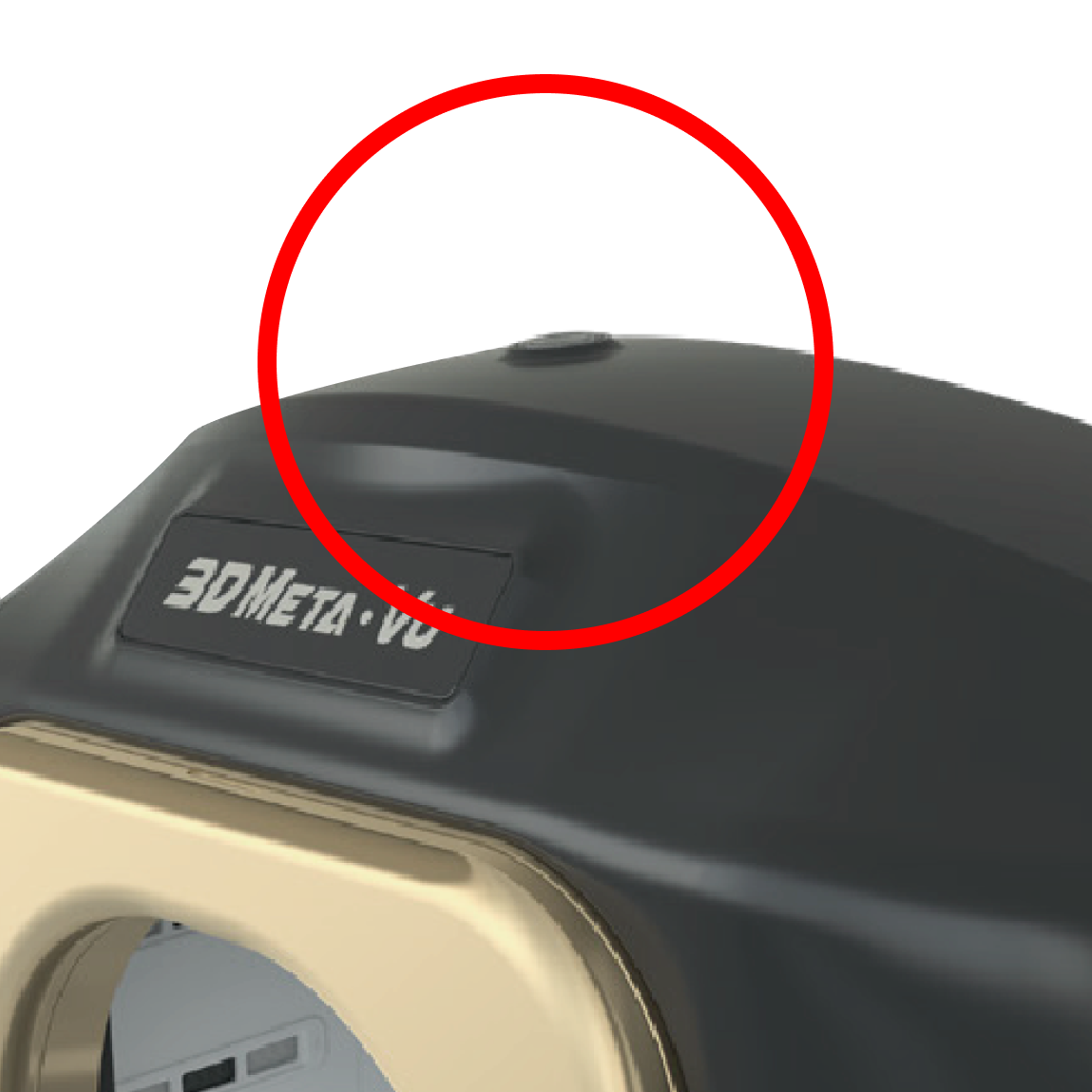

  • Hardware Advantages

Quantitative Analysis & Visual Assessment

Quantitative Analysis & Visual Assessment

We provide precise information on the skin and face through quantitative analysis and visual evaluation.
With features such as pigmentation and aging simulation, length, angle, and layer analysis, R&B virtual laser,
contour and color map representation, you can visually assess the present and future of your skin.
The high-definition full-screen display and voice guidance during shooting enhance usability,
allowing for detailed consultations, including neck wrinkles and skin analysis.

Before and after procedure comparison

Before / After Comparison

Actual customer photos (Before/After filler procedure)

Before and after procedure comparison

Product Specifications

Camera 3 Canon EOS Cameras
Pixels 24 Mega Pixels
Image Sensor APS-C 1:1.6 CMOS
Lens 18mm Customized Lens
Focus Fix Focus Control
Light Sources Normal Light
Specular Light
Polarized Light
Ultraviolet Light
Control Controlled by Microprocessor
USB Communication
Automatic Light Control
Input Power DC 19.5V / 11.8A

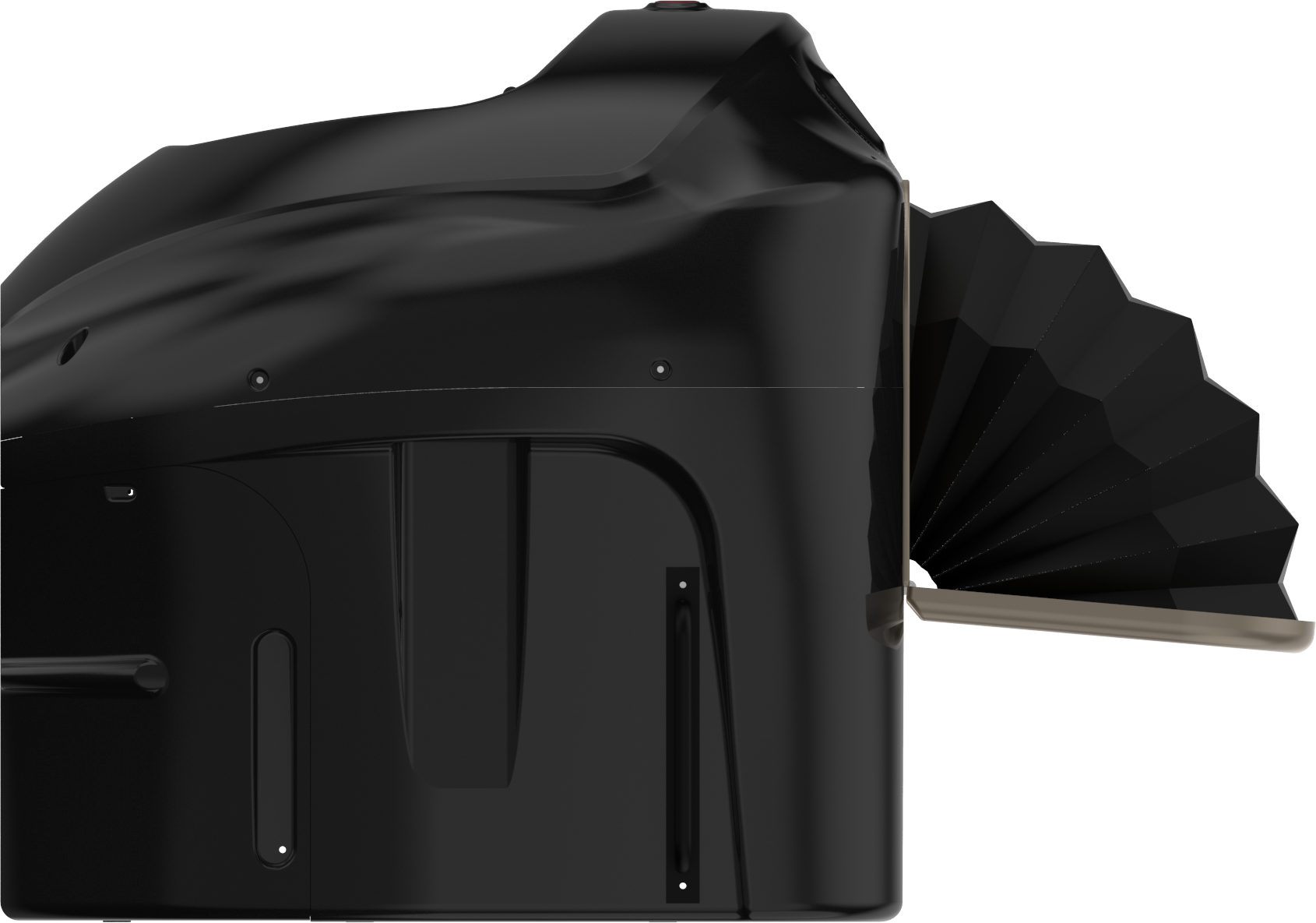

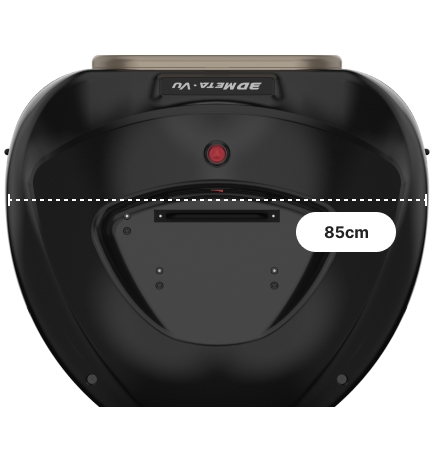

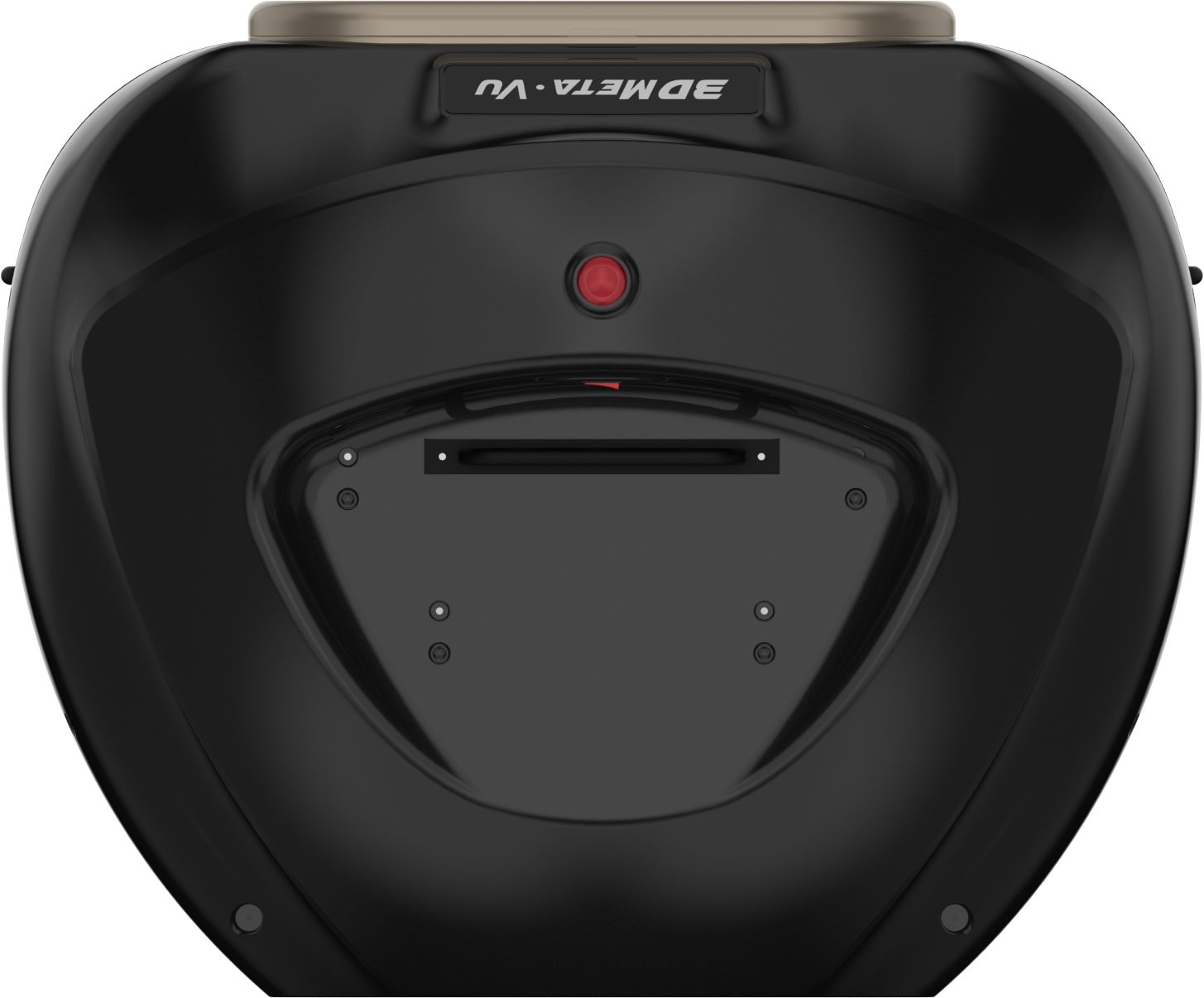

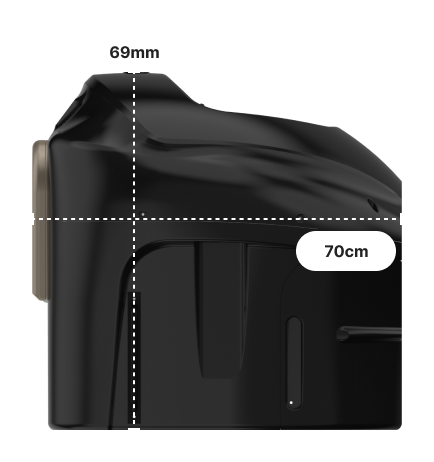

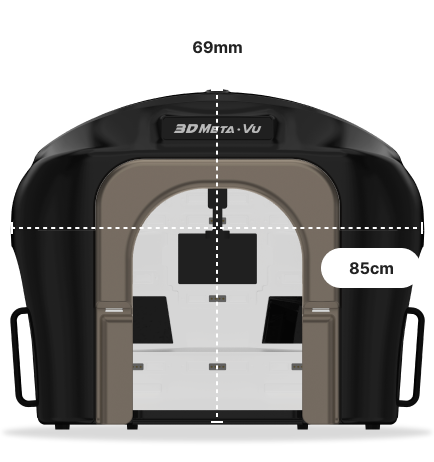

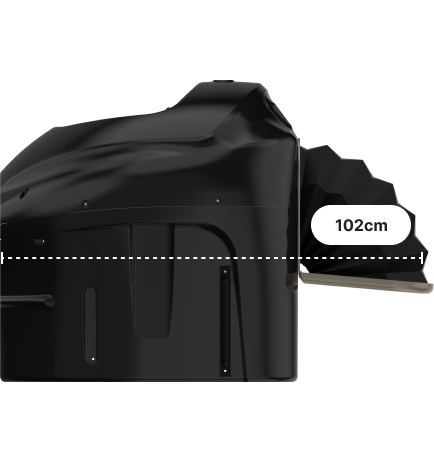

Size & Weight 85(L) x 70(W) x 69(H) cm / 20 kg

3D Meta-Vu

Applications Plastic Surgery Clinics,
Dermatology Clinics,
Research Laboratories
Applications 3 Canon EOS Camera
Product Dimensions 85 (L) x 70 (W) x 69 (H) cm, 20kg

Special Features

 • Virtual plastic surgery
• See face contours
• See neck wrinkles
• Color map contours on face
• Rotating 3D face
• Ratio, length, and angle
   measurement on face

Mark-Vu

Applications Dermatology Clinics,
Research Laboratories,
Cosmetics Research Laboratories
Applications 1 Canon EOS Camera
Product Dimensions 58 (L) x 41 (W) x 51 (H) cm, 8.3kg
Special Features • High resolution camera
• Meet the special
   needs of Dermatology
   (help diagnose vitiligo
   at an early stage
   for treatment)
• Clear and accurate /
   noise removed images

Line-Vu

Applications Beauty Clinics,
Cosmetics Stores,
Aesthetic Shop
Applications Customized USB Camera
Product Dimensions 31.7 (L) x 36.6 (W) x 45.5 (H) cm, 6.3kg
Special Features • Neck wrinkles analysis
• Skin problem description
   for easy consultation
